Weld-RX

Weld-RX

$6,495.00 USD
$6,495.00 USD

Weld-RX focuses on three main objectives: efficient removal of ultrafine particles, greater maneuverability of the extraction arm, and maximum airflow.

Laser welders produce ultrafine particulate matter in the form of fumes. Weld-RX comes standard with our highest quality HEPA filter and F9 pre-filter (MERV 16 equivalent), the same used in our popular line of laser fume extractors. The pre-filter protects the HEPA at a submicron level, while the critical HEPA filter cleans the air with an efficiency of 99.999% at 0.3 micron. An oversized 22 m² filter area and an integrated steel mesh spark arrestor keep airflow strong and extend filter life.

Specifications

  • Height47" (not including arm)
  • Width32"
  • Depth37"
  • Max Airflow1200 CFM
  • Voltage120V
  • Frequency50-60 Hz
  • Amperage12 A
  • Weight260 lbs.
  • Noise Level70 dB
  • Warranty1 year

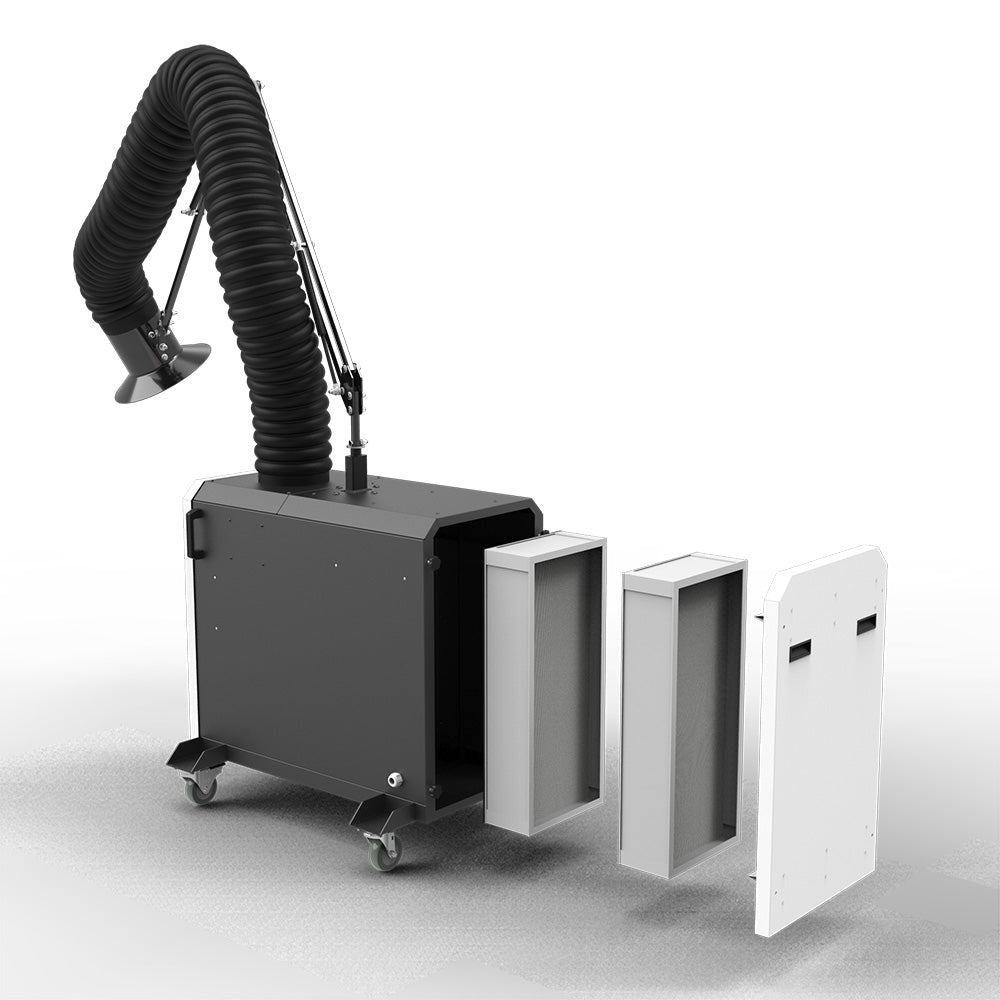

Included Filters

Type
Material
Total Media
1 Pre-filter
Glass Fiber (F9)
22 m²
1 HEPA
Glass Fiber
22 m²
1 Spark Arrestor
Steel Mesh
9 x 28 in.
  • HEPA and Pre-Filter as Standard
  • Integrated Pressure Gauge
  • Rigid Aluminum Case
View full details

High-Velocity Fume Capture in Action

Effective source capture removes hazardous welding fumes before they spread through the workspace. Designed to help maintain air quality standards while improving overall shop safety and comfort.

Applications

  • Laser Welding

    Traditional Handheld Welding

    Soldering

    Rust and Paint Removal

  • Laser Welding

    Traditional Handheld Welding

    Soldering

    Rust and Paint Removal

  • Laser Welding

    Traditional Handheld Welding

    Soldering

    Rust and Paint Removal

  • Laser Welding

    Traditional Handheld Welding

    Soldering

    Rust and Paint Removal

  • Laser Welding

    Traditional Handheld Welding

    Soldering

    Rust and Paint Removal

  • Laser Welding

    Traditional Handheld Welding

    Soldering

    Rust and Paint Removal

  • Laser Welding

    Traditional Handheld Welding

    Soldering

    Rust and Paint Removal

  • Laser Welding

    Traditional Handheld Welding

    Soldering

    Rust and Paint Removal

Download Brochure

Related products

FAQ's

How long does each filter generally last?

Unfortunately it’s not one with an easy answer. Life of each filter is greatly dependent on your application(s), materials being processed and hours of daily use.

Heavy wood processing (cutting or engraving) will have a greater impact on the pre-filter life. Due to the sticky residue / particles from wood processing, the pre-filter tends to get saturated quicker whereas the oxy-carbon may last 2 years.

Can I clean the filters regularly, avoiding the need to order new ones?

No. Filtrabox pre-filters and HEPA filters are designed to maximize capture efficiency for ultrafine laser particulates. Compressed air, cleaning agents or other cleaning methods may result in a damaged or inefficient filtration. Our oxy-carbon filters contain a mixture of coconut shell activated carbon and potassium permanganate The adsorption and chemical reactions that take place between the contaminants and the media are not reversible.

How do I know if my filters are good and at what capacity and when to change them?

It starts with reading through our short but complete owner’s manual. If you don’t have a copy, you can download the latest version here. Our 3-steps to maximize filter life document, found here is also recommended. The owner's manual will get you familiar with your specific Filtrabox model, filter location and provide instructions on how to check a few things.

What isn’t noted in the owner's manual is that the Filtrabox air-flow range and filter life remaining feature operates on a scale of 1-100%. If your air-flow setting is set to 40% and if you do a filter check test, you’ll get roughly 60% life remaining, even with brand new filters installed. If the air-flow is set to 60%, filter life remaining will be approximately 40%, even with new filters installed.

The filter check feature is very useful in gauging how much life you have remaining in your filters before replacements are required.
